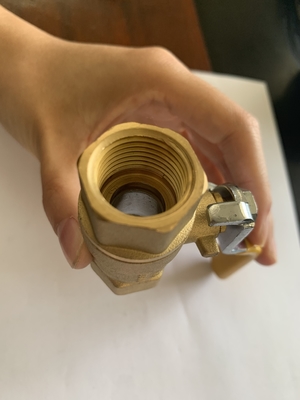

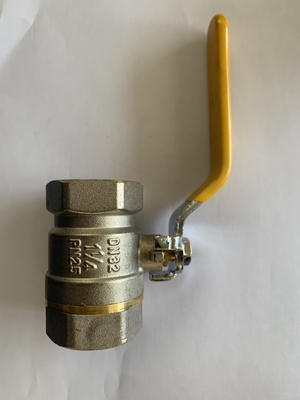

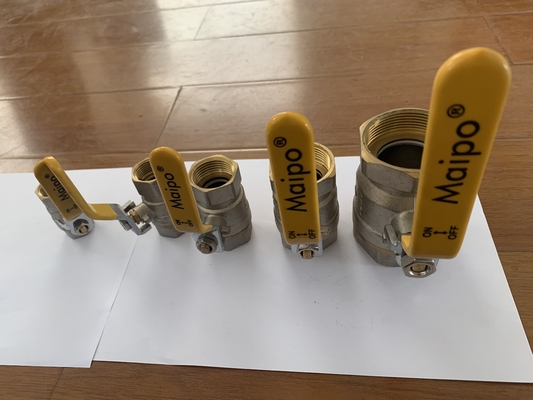

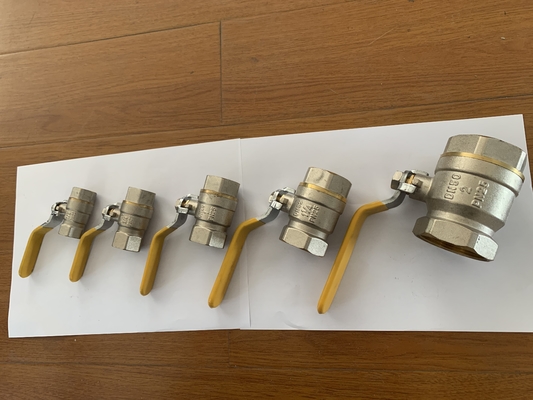

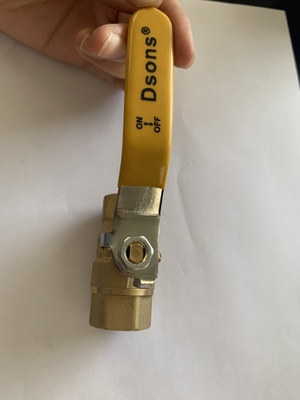

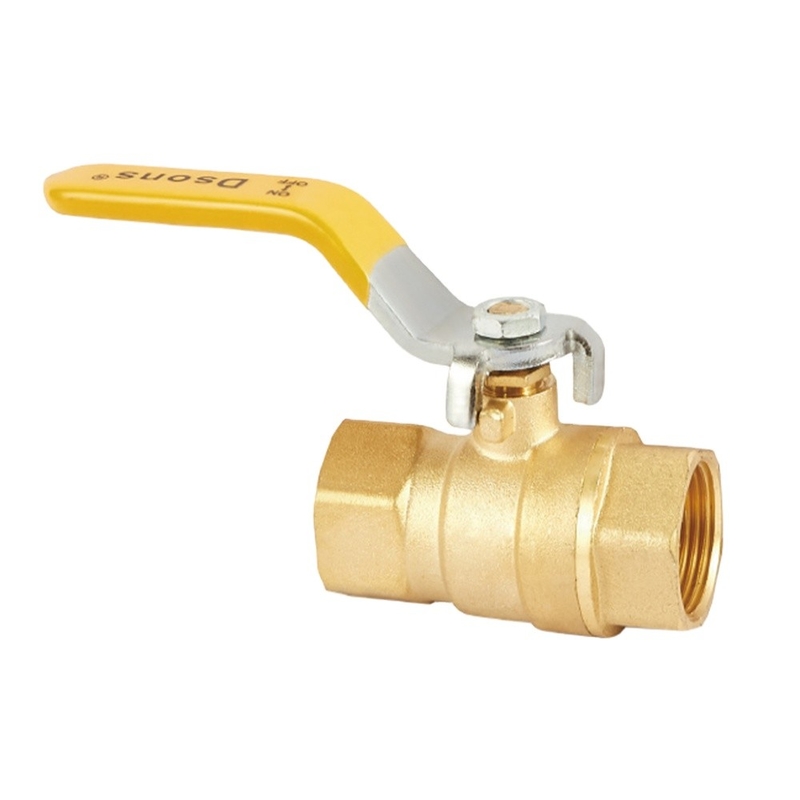

Name: 1/2 3/4" Inch wholesale zinc Brass Ball Valve with yellow plastic handle
Brand: Taizhou Qishang Valve Co.,Ltd
SKU: QS-2-005
Price: 0.45 USD
Availability: InStock

Home Products Brass Ball Valve

1/2 3/4" Inch wholesale zinc Brass Ball Valve with yellow plastic handle

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	QISHANG
Model Number:	QS-2-005

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Price:	$0.45 - $1.50/pieces
Packaging Details:	box,carton and wood pallets for wholesale Brass Ball Valve
Supply Ability:	5000000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Warranty:	3 Years	Type:	BALL VALVES, Ball Valve
Customized Support:	OEM, ODM, OBM	Application:	Kitchen ,Bathroom , Balcony ,Toilet
Temperature Of Media:	Normal Temperature	Power:	Manual
Media:	Water	Port Size:	1/2"-4"
Structure:	BALL	Product Number:	QS-2-005
Body Material:	Zinc Alloy	MOQ:	500PCS
Function:	Kitchen ,Bathroom , Balcony ,Toilet	Product Name:	Wholesale Brass Ball Valve
Media:	Gas	Application:	General
Port:	Ningbo Or Shanghai

Brass ball valve

Brass has the largest market . Brass is an alloy of copper and zinc and has good mechanical properties. Brass
valves are used for (drinking) water, gas, oil, air and many other media. Chloride solutions (e.g. seawater) or demineralized
water may cause dezincification. Dezincification is a form of corrosion where which zinc is removed from the alloy. This creates a
porous structure with a greatly decreased mechanical strength. A brass housing is ideal for an air ball valve.

Material	Advantages	Disadvantages
Brass	Durable, suitable for most applications	Sensitive to dezincification
Zinc	Good fluidity, easy to weld and braze,corrosion resistant	lower melting point

Ball Valve - How They Work

A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating
the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked. They are characterized by a long
service life and provide a reliable sealing over the life span, even when the valve is not in use for a long time. As a result,
they are more popular as a shut off valve then for example the gate valve. For a complete comparison, read our gate valve vs ball
valve article. Ball valves are more resistant against contaminated media than most other types of valves.
In special versions, ball valves are also used as a control valve. This application is less common due to the relatively limited
accuracy of controlling the flow rate in comparison with other types of control valves. However, the valve also offers some
advantages here. For example, it still ensures a reliable sealing, even in the case of dirty media.

View our online selection of ball valves!

Brass ball valves
Select and buy a manual 2-way brass ball valve online for your application. The 2-way brass ball valve is one of the most common
valves on the market. It has a brass housing and 2 ports, an inlet and an outlet, and a ball with a bore in it. They are operated
by a manual hand lever to turn the ball 90 degrees, which is why they are often called quarter turn ball valves or shut off
valves. Simply turn the handle perpendicular to the pipe to close it and parallel to open it. Due to the brass housing and simple
design, they are known for their simple operation, reliability, long service life, and wide range of application uses. The brass
housing makes it suitable for water, compressed air, oils, non-aggressive media, and much more. They commonly have water or gas
approvals and due to their threaded connection they are easy to install.
Other main selection criteria for manual 2-way brass ball valves include: connection size, seal material, pressure rating, and
temperature rating.
* Right angle ball valves allow you to have on/off control between perpendicular pipes.
* Threaded ball valves allow for quick and easy installation into existing piping or components with matching threads. Both male
and female thread combinations are available.
* Mini ball valves are ideal for applications with limited installation space as they save space, weight, and cost.
* Brass faucet and boiler ball valves are used for faucet and boiler applications as they drain or discharge your system.

Brass housing

Brass is an alloy of copper and zinc and has great mechanical properties. Brass ball valves are known for their durability and no
leakage over their life span, even if they have not been used for a long period of time. These brass ball valves can be used with
drinking water, gas, mineral oils, compressed air and many other non-aggressive media. But they are not suitable for use with salt
water or distilled water due to the risk of dezincification. Dezincification reduces the mechanical strength of the brass by
causing the zinc to be removed from the alloy resulting in a porous structure. However, brass ball valves are more resistant
against contaminated media as compared to other types of housing material and provide reliable sealing even in case of dirty
media.
They can withstand high pressure, high temperature and high flow rates. They are also economical due to their simple and robust
design, low cost and low maintenance needs. Due to these advantages, brass ball valves are used in a wide range of residential and
industrial applications. Some common application includes controlling domestic hot and cold water systems, steam applications,
irrigation system, natural gas system, marine industries, fire protection application, chemical industries, etc.
For additional information to select a ball valve, read our technical article or contact customer support.

Check out our online selection of ball valves in brass,zinc

Qishang Highlights:

1.Full production line including Gravity Casting Line, Machining Line, Polishing Line and assembling line.

2.Rich experience in exporting business.

3.Innovation is the key to the development of our enterprise.

4.Systematic Management applied.

5.Manufacturing capacity up to 80000pcs Per Month.

6.Well equipped with modern test machines insuring reliability and endurance of products.

7.Skilled engineers and workers

Company Profile

Yuhuan Qishang valve manufacturer.

Is established in 2 0 1 6, located in Yuhuan City,Zhejiang Province. The company has plant area of 5 0 0 0 square meters.
mainly provides O E M die-casting and forging parts for overseas customers, including bibcock, angle valve, ball valve, stop
valve, globe valve,dark valve, float valve,bathroom accessories, faucets, etc.
More details, Pls Contact US !!!

Product packaging and materials

* Package:inner box with color box,white boxor neutral box or blister card for choice or can be made as customers' requirements

* Shipping:30 days for bulk order,2days for sample order(depends on different products)

Certifications

FAQ

Q:What is the payment term?

A;30% deposit,70% paid before shipment.L/C,T/T,Cash,Paypal,Western Union is acceptable.

Q:Can we use our own shipping agent?
A:Sure.

Q:How can I get one valves as a sample?

A:Pls contact and tell us the item that you need.We will make a PI for your payment. After payment received,products will be delivered.

Q:Can we mix the container?
A:Yes,but hope it will not be more than 4 different models for 1*20GP,8 for 1*40HQ.Otherwise it will be more difficult for our
container loading..

Q:Can we use our own logo on valve and packing?
A:Yes,OEM is acceptable..Please send email to us for more details.
