Rustproof One Way Water Check Valve 32mm 22mm Non Return Valve

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	qishang

Payment & Shipping Terms:

Minimum Order Quantity:	2000 pieces
Price:	$0.65/pieces 2000-999999 pieces
Packaging Details:	box,carton and wood pallets for conceal cock zinc
Supply Ability:	5000000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Warranty:	3 Years	Type:	BALL VALVES, Stop & Waste Valves, Truck Shut-Off Valves, Conceal Cock Zinc
Customized Support:	OEM, ODM, OBM, Software Reengineering	Application:	General
Temperature Of Media:	Medium Temperature	Power:	Hydraulic
Media:	Base	Port Size:	20MM~63MM
Structure:	BALL	Product Number:	QS-6-001
Body Material:	Brass	MOQ:	500PCS
Function:	Industry	Size:	1/2" 3/4"
Port:	Ningbo Or Shanghai
Highlight:	One Way Water Check Valve 32mm , One Way Water Check Valve 22mm , rustproof 22mm Non Return Valve

Brass Cross Fitting Pex Pipe Fitting one way piston check valve non return

1/4" to 3"

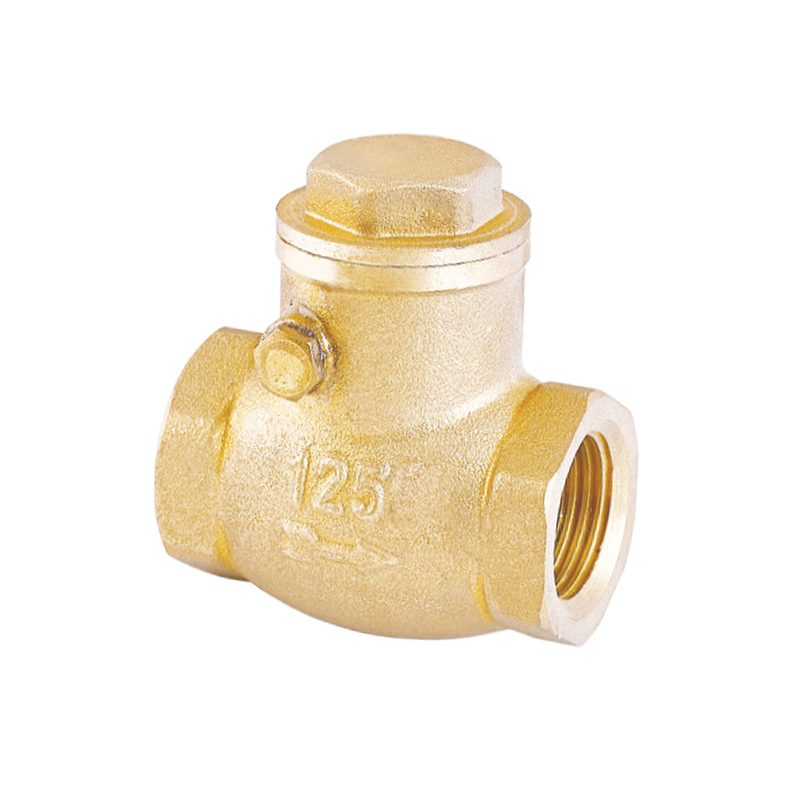

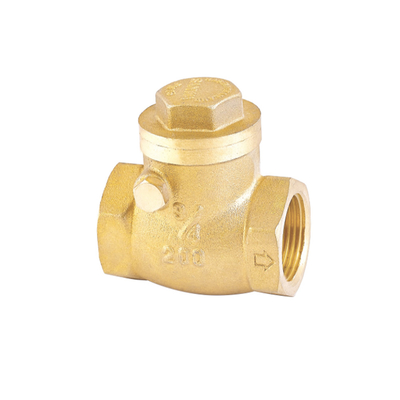

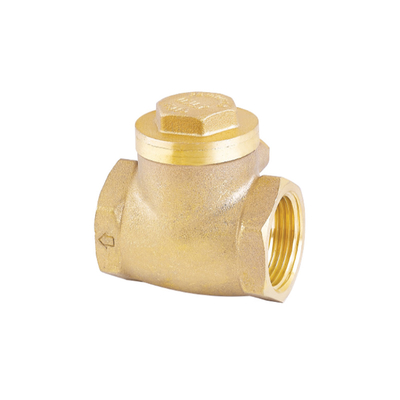

Swing Check Valve - Bronze

Features & Benefits

* Check valves permit flow in one direction only and close automatically if flow reverses.

* Entirely automatic in action, depending upon pressure and velocity of flow within the line to perform their functions of
opening and closing

* The Crane D142 bronze check valve is of the swing variety

Connection size	1/4" to 3"
Material	Brass/zinc
Seal material	NBR (nitrile rubber)
Vacuum(bar)	0
Recommended for	Air Alcohols Lubricant Oil Water (up to 60°C)
Valve bore	40
Connection type	Inner thread cylindrical BSPP-G
Valve shape	Inline spring closed
Min temperature	-20
Max temperature	100

G 1 1/2 inch check valve made of brass with an NBR seal. The minimum differential pressure across the non-return valve must be higher than 0.04 bar (0.58 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 18 bar (261 psi). The operating temperature depends on the media: -20° C to +100° C (-4° F to 212° F) for air, -20° C to +60° C (-4° F to 140° F) for gas, and 0° C to +100° C (32° F to 212° F) for water. The Kv-value is 31.63 m3/h (527 l/min @1 bar pressure). In imperial units: Cv = 36.56 GPM @ 1 psi pressure.

Pros:
* Suitable for neutral and non-corrosive media
* Cost effective but reliable check valve
* NBR can be used with water, air, oil, solvents and alcoho
