Name: Female Threaded Brass Swing Check Valve
Brand: Taizhou Qishang Valve Co.,Ltd
SKU: QS-6-001
Price: 1.10 USD
Availability: InStock

Home Products Brass Check Valve

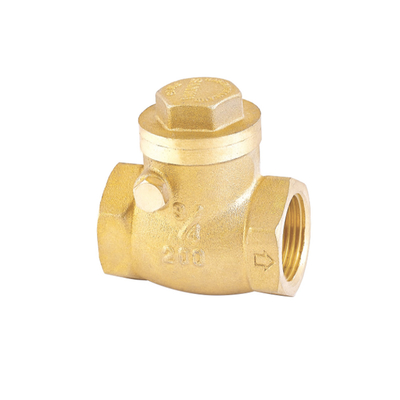

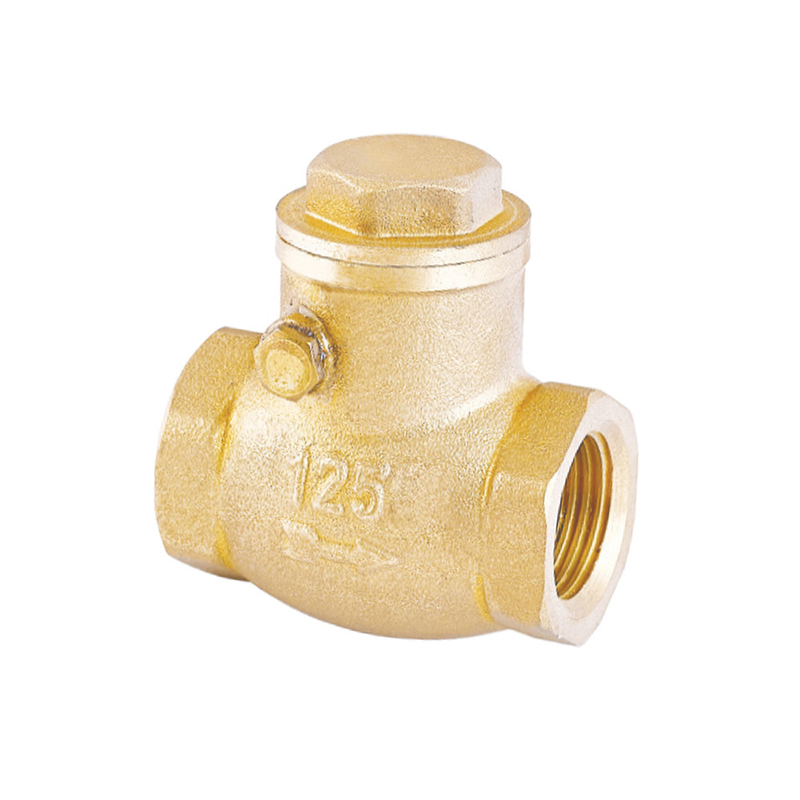

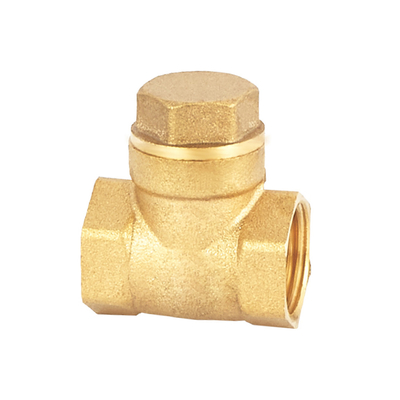

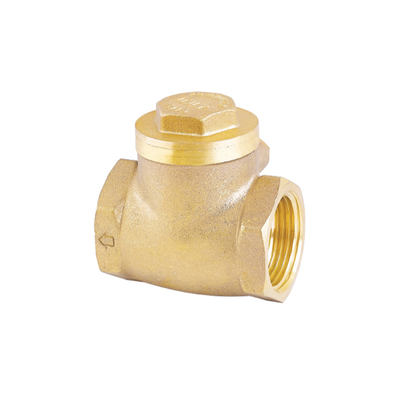

Female Threaded Brass Swing Check Valve

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	QISHANG
Model Number:	QS-6-001

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Price:	$1.10 - $2.00/pieces
Packaging Details:	box,carton and wood pallets
Supply Ability:	5000000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	Stop & Waste Valves, Gas Appliance Isolation Shut-Off Valves, Truck Shut-Off Valves, Globe Valve	Customized Support:	OEM, ODM, OBM, Software Reengineering
Application:	General	Temperature Of Media:	Normal Temperature
Power:	Manual	Media:	Water
Port Size:	1/2"-5"	Structure:	Check
Product Number:	QS-6-001	Body Material:	Brass
MOQ:	500PCS	Function:	Industry
Port:	Ningbo Or Shanghai
Highlight:	Female Threaded Brass Swing Check Valve , Female Threaded Brass water check valve

1/4" to 3"

Swing Check Valve - Bronze

Features & Benefits

* Check valves permit flow in one direction only and close automatically if flow reverses.

* Entirely automatic in action, depending upon pressure and velocity of flow within the line to perform their functions of
opening and closing

* The Crane D142 bronze check valve is of the swing variety

Connection size	1/4" to 3"
Material	Brass/zinc
Seal material	NBR (nitrile rubber)
Vacuum(bar)	0
Recommended for	Air Alcohols Lubricant Oil Water (up to 60°C)
Valve bore	40
Connection type	Inner thread cylindrical BSPP-G

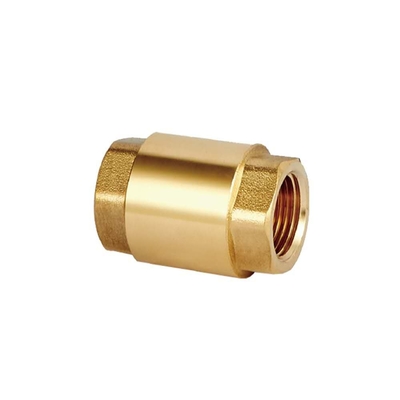

Valve shape	Inline spring closed
Min temperature	-20
Max temperature	100

G 1 1/2 inch check valve made of brass with an NBR seal. The minimum differential pressure across the non-return valve must be higher than 0.04 bar (0.58 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 18 bar (261 psi). The operating temperature depends on the media: -20° C to +100° C (-4° F to 212° F) for air, -20° C to +60° C (-4° F to 140° F) for gas, and 0° C to +100° C (32° F to 212° F) for water. The Kv-value is 31.63 m3/h (527 l/min @1 bar pressure). In imperial units: Cv = 36.56 GPM @ 1 psi pressure.

Pros:
* Suitable for neutral and non-corrosive media
* Cost effective but reliable check valve
* NBR can be used with water, air, oil, solvents and alcoho
